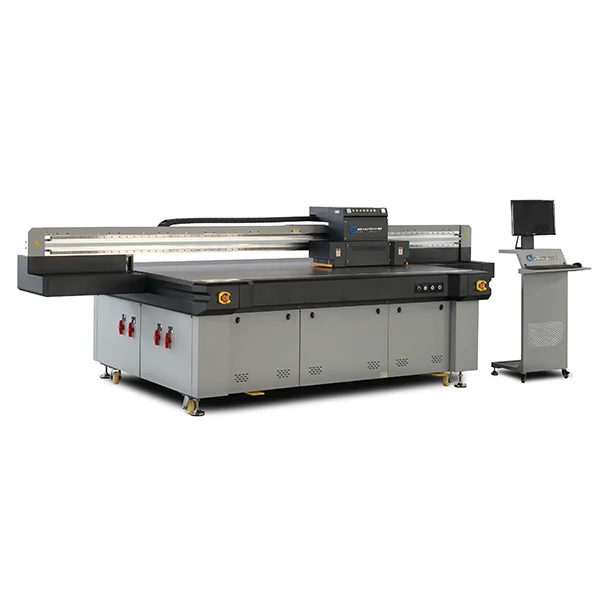

JSW Wide Format UV Inkjet Flatbed Printer
• Variable color configuration, Standard 4 color plus LC, LM, with White and Varnish optional;
• Speed up to 58 m²/h;
• Handles flexible substrate up to 3.2m width, and 3cm thickness;
• White ink and Color+W+Color print capability solution;
• LED UV is more energy-saving and environmentally friendly UV curing system.
Affordable Wide Format UV Inkjet Flatbed Color Printer Details & Features
1. Ricoh Gen5 Printhead
Type: Gen 5, 7PL, printing speed is up to 58m²/h, the resolution is up to 2400DPI. The image is exquisite and the effect is amazing.
2. Intelligent Feather Printing Technology
The unique intelligent feather printing technology can improve the curable reflective stripes which occurred in the printing process so that the printing quality can reach the ideal state.
3. High strength Steel Body Frame and High-precision linear Rail
Integrated heavy duty structure, multi-support points and hard chromium plating liner rail with less noise, high cracking resistance. Make sure a reliable output quality with continual using.
4. Platform Suction Adjustable System
Manually and software platform suction adjustable, help the media be flat in the printing area. Offer a high accuracy of dots dropping.
5. Industry Feeding and Take Up with Tension System
Easy handling within 100kg media supports a stable media feeding without a wrinkle.
6. LED lightBox System
Build-in LED makes it become lightbox, you can preview the actual resolution when printing.
7. Innovative Substrates feeding System
Multi-points floating tension system, which ensures the substrate move accurately and smoothly.
8. Industrial Take up & Feeding System
Industrial strength media handling system up to 360kg. Upright lock for tension rollers design which makes it easy to load and unload for quick job turn-over.
9. Simultaneous printing on multiple rolls up to 3
Capable of printing multiple rolls simultaneously up to 3 rolls, which enhance productivity and reduce the labor cost accordingly.
10. High Precision Heavy Rubber Roller
Multi-point supporting heavy rubber roller, which will make sure the pressure and stepping are uniforms always.
Simple Operation Application of Best Wide Format UV Inkjet Flatbed Color Printer
White Ink Circulation System
To keep double functions which are the white ink main ink tank intermittent mixing and pipeline real-time circulation work, as to keep the white ink flow all time and prevent pigment precipita-tion, avoid ink system failure.
Suction Power Adjustable
Vacuum power with each suction zone can be adjusted base on different types of media, it helps move the different weight of media easily.
Partition Printing
In different printing area to print on different types of media, which will save time because of media change, so that improve the printing capacity within a unit time.
Data Statistics:
After each picture is printed completely, the computer automatically statistics the amount of ink consumption, the printing time, the area and so on.
Main Technical Specification of Wide Format UV Inkjet Flatbed Color Printer
| Model | F2513G |
| Printhead | Ricoh Gen 5 (7PL) Grey Scale Micro Piezo Printhead |
| Printhead No. | 2-8 |
| Print Size | 2500mm*1300mm |
| Print Thickness | Max. 100mm |
| Printhead Quantity | 2-8 units cofiguration |
| Maximum Capacity | 45m²/h |
| Print Area | 2.5m by 1.3m |
| Ink Color | 4-8 Colors |
| Ink Type | Environmental UV Curing Ink |

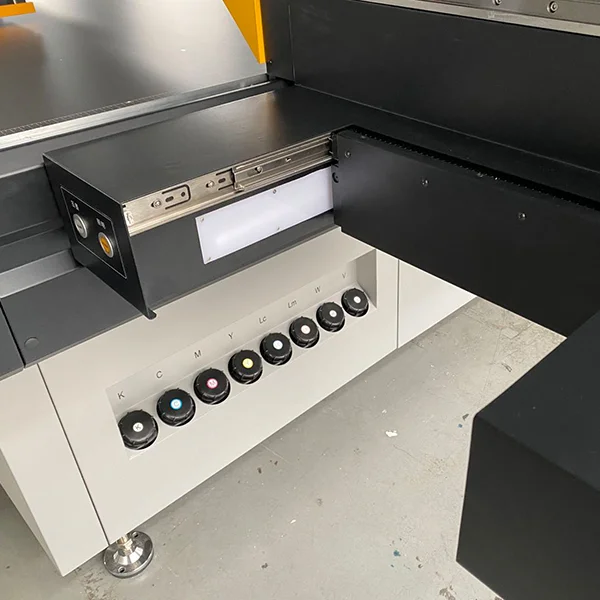

| Ink Color | C ,M, Y, K, LC, LM, W, Varnish ( optional) |
| Ink Bottlet | 5Liters/Color |
| Ink Supply System | Automatic Negative Pressure Ink Supply System |
| Ink Monitoring System | Automatic Ink Lack Alarm System |
| Rip Software | Print Factory(from Netherlands); Onyx is optional. |
| Media Type | Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, PC, TPU, Leather, PVC Board, etc. |
| Media Suction Area | 4 Vacuum Zones, Available for Different Types of Media |
| Print File Format | TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc. |
| Printhead Cleaning | Automatic Cleaning System, Main Cleaning and Separate Color Cleaning |
| 2513Printer Dimension | 4155mm*1980mm*1506mm (Length*Width*Height) |
| 2513 Printer Weight | 1500KG |

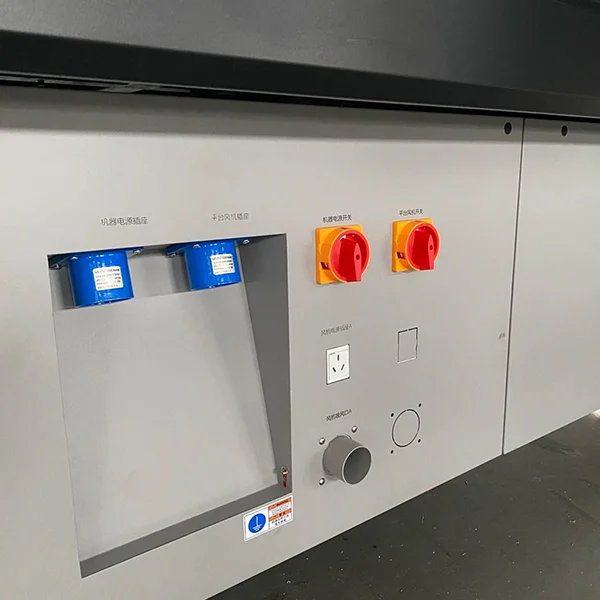

| Power | 220V 50HZ/60HZ |
| Power Rating | 8KW |
| Lifting Function | Carriage Lifing, Auto/Manual Electronic Intelligent Sensor Detection Adjustment |
| Computer Configuration | Computer System: Win 10, 64 bit; Port USB 2.0/3.0; Hard Disc: More than 500G; |
| GPU Memory: 8G; CPU: Intel i5 | |
| Working Environmen | Independent, Clean, Low Dust, Less Sunshine, Well Ventilated Workshop, |
| Temperature: 15℃-28℃，Humidity: 40%-70% | |
| Ventilation Device | Ventilation Fan is Necessary. Air Exhaust Volume: 600 CFM |
| Print Speed | High-Speed Mode 45m²/h |
| Production Mode 30m²/h | |
| High-Quality Mode 23m²/h |
